LAX series 16-100 A
Isolation characteristics
Symbol
Unit
Value
Rms voltage for AC isolation test, 50 Hz, 1 min, between
primary and secondary
Impulse withstand voltage 1.2/50 μs
Partial discharge extinction voltage rms @ 10pC
Creepage distance
Clearance distance
Comparative Tracking Index
V d
V w
V e
dCp
dCI
CTI
kV
kV
kV
mm
mm
V
3.5
8
> 1.3
8
8
600
Isolation application example
The transducer can be used according to EN 50178 and IEC 61010-1 standards under following conditions
(for example):
?
?
?
?
?
Rated isolation voltage: 600 V
Reinforced isolation
Over voltage category OV III
Pollution degree PD2
Non-uniform field
The creepage distance and clearance of the transducer mounted on a PCB are greater than 8 mm only if the primary
circuit tracks stay out of the shaded area shown below:

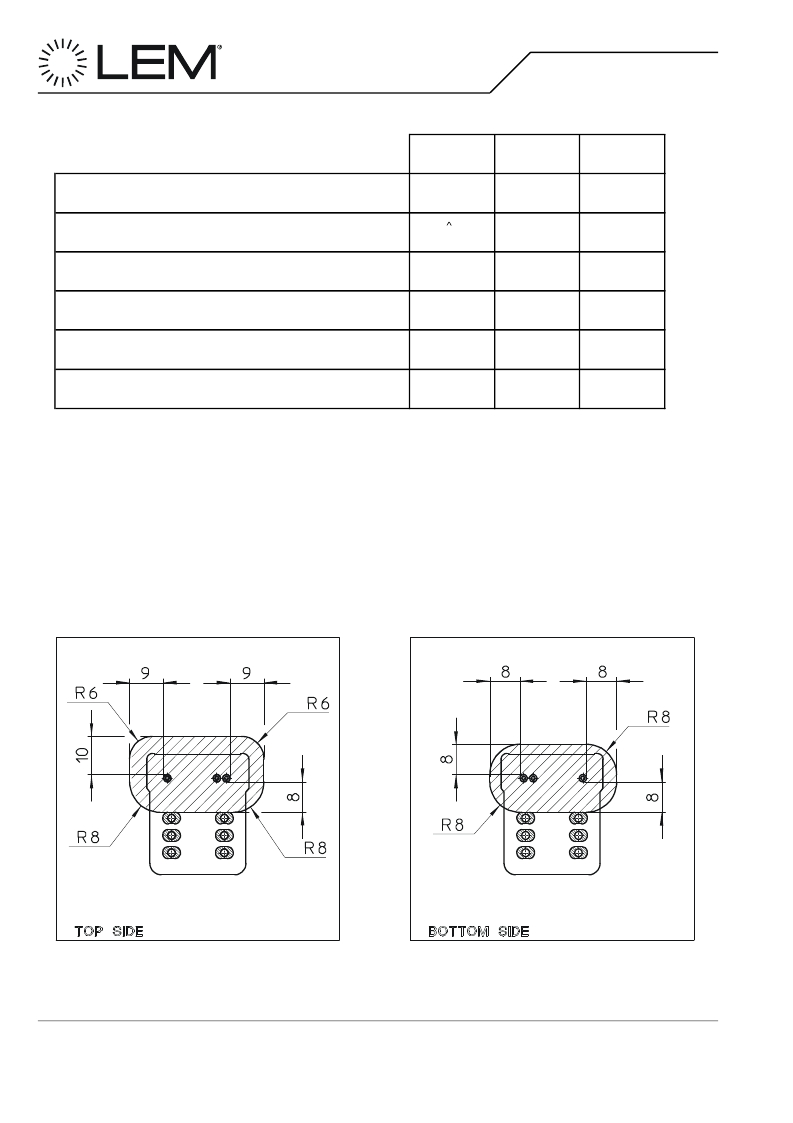

Figure 1: zone not permitted for primary tracks (to guarantee rated creepage and clearance)
Page 4/12
070615/8
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice.
